派克固美麗導電彈性體/導電橡膠——板料和模切件
|

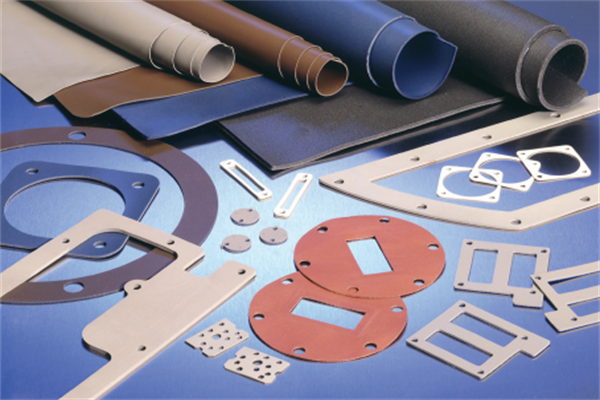

派克固美麗導電彈性體/導電橡膠——板料和模切件 幾乎每一種Chomerics 民用彈性體材料的板材均有貨，我們的標準尺寸和厚度的板材能滿足大多數使用者的需要，見表2。表中沒有的尺寸，請與我們公司聯系。所有0.032in.(0.81mm)厚或更厚一些的標準硅酮板都帶有非導電壓敏粘合劑薄背襯（PSA）。這層粘合劑增加了襯料的體積電阻率和界面法蘭電阻，相應降低了屏蔽效果（一般5-10db）。本樣本中所述的技術規格、性能和特點，均不包含這一粘合劑背襯。
|
|
定做件可以由我們公司從任何標準板料上模切下來。請?zhí)峁┎輬D或圖紙（公差見表1）。對定做的模切件，Chomerics的物料編號是：19-11-XXXX-ZZZZ
這里xxxx是一個序列工程圖號，由Chomerics 來確定，ZZZZ是材料符號（1350、S6304等等）。

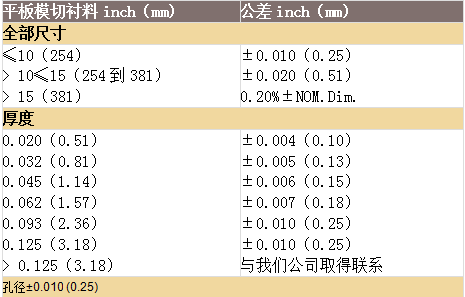

表1：

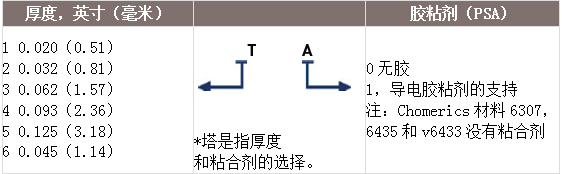

從表2選擇物料編號，后4位或5位數字表示材料。對于物料編號里的“TA”選擇所需要的厚度和粘合劑選項（在表2下面方框中）。對于定做的尺寸或厚度，物料編號將由Chomerics來確定。
表2：
|
標準版尺寸 可供貨的厚度, inches (mm) |
|||||||
|
物料編號 |
板尺寸Inches (cm) |
0.020 ±0.004 (0.51 ±0.10) |
0.032 ±0.005 (0.81 ±0.13) |
0.045 ±0.006 (1.14 ±0.15) |
0.062 ±0.007 (1.57±0.18) |
0.093 ±0.010 (2.36 ±0.25) |
0.125 ±0.010 (3.18 ±0.25) |
|
40-TA-1010-1212 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-1212 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1212 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1212 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-1215 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-1215 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1215 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1215 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-1217 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-1217 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1217 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1217 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-1221 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-1221 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1221 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1221 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-1224 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-1224 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1224 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1224 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-1270 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1270 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1270 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-1273 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-1273 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1273 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1273 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-1285 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-1285 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1285 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1285 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-1287 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-1287 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1287 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1287 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-1298 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-1298 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1298 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1298 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-1310 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-1310 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1310 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1310 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-1350 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-1350 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1350 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1350 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-1401 |
10 x 10 (25.4 x 25.4) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-1401 |
10 x 15 (25.4 x 38.1) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-1401 |
10 x 20 (25.4 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-1401 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-T0-1010-6307 |
10 x 10 (25.4 x 25.4) |
N/A |
√ |
√ |
√ |
√ |
√ |
|
40-T0-1015-6307 |
10 x 15 (25.4 x 38.1) |
N/A |
√ |
√ |
√ |
√ |
√ |
|
40-T0-1020-6307 |
10 x 20 (25.4 x 50.8) |
N/A |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-6330 |
10 x 10 (25.4 x 25.4) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-6330 |
10 x 15 (25.4 x 38.1) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-6330 |
10 x 20 (25.4 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-6371 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-6371 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-6371 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-6371 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-T0-1010-6435 |
10 x 10 (25.4 x 25.4) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-T0-1015-6435 |
10 x 15 (25.4 x 38.1) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-T0-1020-6435 |
10 x 20 (25.4 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-6460 |
10 x 10 (25.4 x25.4) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-6460 |
10 x 15 (25.4 x 38.1) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-6460 |
10 x 20 (25.4 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-6460 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-6502 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-6502 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-6502 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-6502 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-6503 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-6503 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-6503 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-6503 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-L6303 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-L6303 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-L6303 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-L6303 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1010-S6305 |
10 x 10 (25.4 x 25.4) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1015-S6305 |
10 x 15 (25.4 x 38.1) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-1020-S6305 |
10 x 20 (25.4 x 50.8) |
√ |
√ |
√ |
√ |
√ |
√ |
|
40-TA-2020-S6305 |
20 x 20 (50.8 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-T0-1010-V6433 |
10 x 10 (25.4 x 25.4) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-T0-1015-V6433 |
10 x 15 (25.4 x 38.1) |
NA |
√ |
√ |
√ |
√ |
√ |
|
40-TO-1020-V6433 |
10 x 20 (25.4 x 50.8) |
NA |
√ |
√ |
√ |
√ |
√ |
√有貨 NA=沒貨
*TA是指厚度和粘合劑的選擇。
除了表中列出的尺寸，改變物料編號中第五到第八位數，反映需要的尺寸（例如，0415是4 in.x 15in.的尺寸）。
